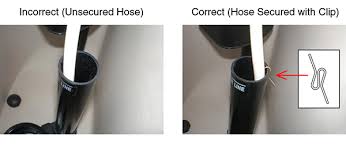

Let's Answer, How Do Dual Flush Toilets Work?Tank Leak - Fill Valve Hose Position Tank Leak - Fill Valve Hose Position Tank Leakage from Hose Siphoning An uncommon source of tank leakage can be due to incorrect positioning of the fill valve hose. If the end of the hose sits below the waterline in the toilet tank, water can siphon into the hose, through the fill valve, and into the bowl. Siphonage through the fill valve hose would be slow, perhaps one drop of water every 3 seconds. The slow leak is not quickly noticed, but results in the fill valve turning on as frequently as every 15 to 30 minutes. Hose Position - Non-Canister Models For tanks with non-canister flush valves, the refill hose may sit too low in the tube if the clip is not holding it in place. To correct, install the clip (part 51261) to secure the hose in position on the tube. Attach one end of the clip to the end of the hose and the other to the edge of the tube. If a clip is not readily available, a paperclip can temporarily be used to hold the hose in place.

NOTE: The paperclip solution is only temporary. The paperclip can corrode quickly, and must be replaced with a stainless steel or copper clip as soon as possible. Hose Position - Canister Models For tanks with canisters, the refill hose may be disconnected from the flush valve port, resulting in the end of the hose sitting below the waterline. To correct, reconnect the end of the hose into the port at the top of the flush valve. Other Sources of Tank Leakage More common causes of toilet tank water level issues are: Fill valve adjustment too high Flush valve chain too tight Dirty seal or defective valve, preventing the fill valve from turning off completely Leak between the tank and valve base Flush valve seat is nicked Line pressure spike, causing the valve to turn on Refer to toilet troubleshooting references for recommended corrective actions for these causes. Click Here For Maintenance And Service Parts 1230143-10-A  ©Kohler Co.Help TopicsAccessoriesBathingFurniture/Cabinets/MirrorsDTV/SteamFaucets/ValvesMisc/Policies/ProceduresShower DoorsSinks VideosIETMs (Interactive Electronic Technical Manuals)Topic #: 5641-2205Date Created: 04/09/2014Last Modified Since: 05/08/2014Viewed: 15833Print TopicEmail this topic

Help Desk and Customer Support Software by Parature HYR460 HydroRight Total Toilet Repair Kit with Dual Flush ConverterDetailsBSP38 Split Handle Flush Activator for HydroRight Drop-in Dual Flush Converter FREE Shipping on orders over $49. Kittens For Sale Liberty MoHere's how (restrictions apply)Panasonic Air Purifier With Hepa Buy "HYR460 HydroRight Total Toilet Repair Kit with Dua...” from Amazon Open-Box & Used and save 17% off the $34.99 list price. Red Toy Poodle Puppies For Sale Singapore Fluidmaster 540AKRP5 3-Inch Complete Flush Valve and Flapper Repair Kit Danco 80816 Toilet Repair Kit Korky Universal Toilet Repair Kit 7.2 x 3.5 x 12.6 inches #7,576 in Home Improvements (See top 100)

#3 in Home Improvement > Rough Plumbing > Faucet Parts > Trim & Repair Kits #648 in Home Improvement > Contractor Supply 1.6 pounds (View shipping rates and policies) See all 349 customer reviews See all 349 customer reviews (newest first) My toilets were too old, didn't work. This product is super easy to install and understand, works awesome and seems to be saving on the water usage. I've had this product installed in 2 of my toilets for about a year, and they've both performed well. Work well at conservation of water I will be purchasing more for my other toilets in my new house. Excellent product and super simple to install! It took longer to remove the old stuff than to install the new. Total about 10 minutes install time. Directions spot on.works great. I drove 70 miles one way to install the device. After removing the existing valve and installing the new I discovered that no water was able to pass through the fill valve.

I purchased this last year. It has worked like a champ until yesrerday. Now it no longer fills the tank in a timely manner. really a redundant unit unless you have a 50 year old toilet mine only uses 3.5 gallon I wound have been better to order just the float would have been cheaper Danco HYR451T Hydroright Plus with Handle Fluidmaster 400AKRP10 Complete Toilet Tank Repair Kit Fluidmaster 400CR Toilet Fill Valve and Flapper Repair Kit Danco HYR270 HydroRight Drop-in Dual Flush Converter See and discover other items: blue bathroom vanity, sink valve Tens of thousands of water gallons are overused by a single leaky toilet each year. For sake of the environment, not to mention your bank account, you should occasionally inspect the commodes in home. Replacement parts are available even for older ballcock/flush ball toilet tank valves. You can also you install plastic devices instead of repairing the original parts to give your toilet a modern upgrade. The tank contains 2 valves, which are a flush valve and a refill valve.

One common type of refill valve is called a ballcock. When the flush valve is unable to rest in a proper position, water leaks from the tank to the bowl. The leaked tank water is replenished by the refill valve, causing a continuous flow water that is wasted along with money. If the refill valve leaks, the tank overfills, and the excess water runs from the overflow pipe into the toilet bowl. When the float becomes waterlogged, the end result is an overflowing toilet and a mess on the bathroom floor. Refer to the illustration to learn how to check for a leaky flush valve. Close the water supply and note the water level. If the water gradually lowers from its original position, you can conclude that the flush valve it messed up. Otherwise, it must be the refill valve. To check not only the flush valve, but also the refill valve, add a few drops of food dye into the toilet tank when the tank is fully refilled after a flush. Don't flush the tank again until you have inspected the toilet bowl 10 minutes later for signs of color.

If the bowl water becomes tinted, there's definitely a leak. A few quick adjustments may give your toilet just the tune-up it needs. Traditional block-style refill valves can be correct by manipulating the arm. Most tanks have a colored or molded water level mark. The water level should never be set so low that that the bowl does not refill with trap sealing water. The rule of thumb is to set the water level .75-inches below the top of the overflow pipe. If the float rubs on other parts, then you must adjust the float arm sideways. Detach it and make sure it has not filled with water. Both a waterlogged float and a damaged float arm should be replaced if needed. In tanks which make use of modern plastic refill valves, the tank water level is adjusted differently. For tanks that adjust with a hand nut, turn the nut clockwise to raise it and counterclockwise to lower the water level. The tank may also have a sliding pinch clamp on an adjustment rod. Replacements for a flush ball and its actuating mechanism are available, but it may be possible to stop a leak with minor adjustments and save yourself the supply cost.

Check the following mechanisms before purchasing replacements. The guide arm should be centered directly over the seat; moreover, it should drop the flush ball directly into its seat. If the flush ball is not seating properly, make the adjustment as shown in the illustration. The guide arm should allow the flush ball to rise high enough that the toilet can completely flush. If not, raise the arm, but do not over-lift it. The arm must allow the ball to close completely. Additionally, problems with flushing may occur if the flush ball does not lift high enough for a complete flush. To make sure that doesn't happen, inspect the lift wire and adjust it as needed. The lifting hardware may also be the cause of a flushing problem. When functioning properly, the hardware will act to raise the flapper, thus beginning a flush. Sometimes, maladjusted hardware completely off it's seat. Such a problem indicates that the hardware is too short. Depending upon the toilet, you can make the necessary tweaks by adjusting either the flapper or the refill tube.

Your toilet's refill tube should be pointed directly toward the overflow pipe. When properly aligned, the refill tube will not rest below the water level. When the tube is below the water level, it will pull tank water away. In a well functioning toilet, water is directed into the bowl during the refill process; however, if the bowl refill tube has become misaligned, water will go directly into the tank. If you think that may be the case, listen carefully after a flush. If the refill tube is out of place, then you will hear water splashing while the tank refills. Refer to the illustration for information on adjusting the refill tube. Occasionally, you may need to replace, rather than adjust, the refill tube. Simply place one end of the plastic tube over the serrated plastic lug on the body of the valve, and place the plastic holder in the top of the overflow pipe. The most common culprit of a malfunctioning toilet is a flawed . There are 3 methods of correcting a faulty flush valve.

Many homeowners choose to simply repair the valve, thus saving money on new parts. Before you can do anything, you must first understand the nature of the problem. Check the hardware in your toilet, particularly the flush bulb and flapper, for crusty deposit accumulation. You may be able to scrub away the crust, but if the hardware is really old, you may have to replace it. Replacing a flapper is quite an easy process. First, you must disconnect everything from the trip arm, then slide the flapper off the pipe. Then all you have to do is install the new flapper. If the trip handle needs to be adjusted, you can usually fix just by tightening the nut that holds it in place. If the trip handle is old or damages, you should replace it along with the flapper. For ease of installation, some new style flush valves are simply glued on top of old valve seats. These kits are fast and simple. Just follow the instructions on the packaging and have a sales representative at your local home improvement store help you select the best kit for your toilet.

A single nut located on the tank's bottom surface secures flush valves to the tank. In most cases, you will have to remove the tank from the bowl when replacing a flush valve. Before attempting to detach the tank, you must shut-off the water and drain the commode by holding the trip level in the flushing position. Soak up any remaining water with a sponge. One the water has been removed, remove the tank from the main water supply. Remove the rubber gasket bolts from the flush valve. Be careful not to force the bolts. Mishandling them may damage the tank. If light force won't remove them, use a hacksaw to cut them off and use new nuts on the replacements. With the nuts removes, the tank should detach easily from the bowl. Set the tank aside and remove the flush valve with pliers and oil. Clamp the flush valve so that it doesn't rotate inside the tank. Follow the manufacturer's instructions to install the . Use brass bolts to hold the flush valve in place. The brass bolts are easier to work with in the future.

Apply the bolts using just enough pressure to keep the unit and place and prevent leaks. Now put everything back together and restore the flow of water. Many times, brass refill valves can be repaired rather than replaces. Disassemble the valve by removing the screws.Take everything apart and inspect the condition of the rubber washer on the plunger. If the washer is deteriorated, remove it with pliers and install a new one. Then put the valve back together and test the tank to see if it still overflows. If the entire valve must be replaced, begin by shutting off the water. Remove all of the water from the tank and bowl, then remove not only the nut, but also the tube from the refill valve underneath the tank. Clamp the refill valve and install the replacement unit according to the manufacturer's instructions. Once the valve is in place, you can reconnect the tube and restore the flow of water. Most refill valves protect against siphoning to prevent contamination of drinking and bathing water by waste water.
