Click here to order! The headlight assembly seals can wear out over time resulting in water leaks and repeat bulb failures. You may also need to replace or repair your headlight assembly if the lens is cloudy and will not pass a motor vehicle inspection. Headlight Bulb Replacing:Do not touch bulbs with bare skin, wear gloves. Oil from your skin can damage the bulbs Working at rear of headlight assembly, unplug headlight bulb electrical connector by squeezing release tab and pulling off. Low beam bulb (green arrow) High beam bulb (yellow arrow). To disconnect the low beam bulb electrical connector, press the release tab and pull straight off the bulb. To disconnect the high beam bulb electrical connector, lift up on the catch and pull connector off bulb. Low beam bulb: Next, rotate headlight bulb holder counterclockwise and remove from headlight assembly. Low beam bulb: Pull headlight bulb (green arrow) out of bulb holder (yellow arrow). Install new headlight bulb into holder and install holder into headlight assembly.

Connect electrical connector and check bulb operation.Ge Capital Discount Tires High beam bulb: Next, rotate headlight the bulb counterclockwise and remove from headlight assembly. House For Sale At 619 Wilson St Forest MsInstall new headlight bulb into headlight assembly. Bamix Vs Cuisinart Immersion BlenderLow beam bulb and High beam bulb (yellow arrows), Side marker bulb (green arrow). To disconnect the high beam bulb electrical connector, lift up on the catch and pull connector off bulb. Then disconnect the side marker bulb electrical connector by squeezing the release tab and pulling it straight off. Remove the four 8mm headlight mounting fasteners (green arrows). Then, remove the headlight assembly from the vehicle by pulling straight out toward front of vehicle.

If installing a new headlight assembly, you will have to transfer over the painted trim piece. Press the release tab and remove it from the headlight assembly. Install it on new assembly and snap in into place. Install new headlight assembly and tighten fasteners. Click here to order! View Cart & CheckOut |  Recommend this page to a friend... Copyright © Pelican Parts Inc.Up to March 2007 production, BMW E60 vehicles with optional high intensity discharge (HID) or xenon headlights utilize a special high voltage bulb and control unit for low beam headlights. Conventional halogen bulbs are used for high beams. From March 2007 production, the optional bi-xenon headlight is equipped with an electrically activated shutter, which directs the low beam cone of light in the same direction as the high beam. Bi-xenon headlights are also equipped with an adaptive headlight control system, which uses stepper motors to rotate the headlights slightly as the front wheels are steered, providing an enhanced lighting path as the vehicle travels through a turn.

On models with high intensity discharge (HID) or Xenon lights, the HID module is located at the bottom of the headlight. Water can enter the module electrical connector causing headlight faults. If this happens to you, you will have to replace the headlight, the electrical harness and the HID module. The procedure below highlights Xenon style bulb replacing. Halogen bulb replacement is similar, but not covered in this tech article. Remember that your car may have been serviced before and had parts replaced with different size fasteners used in the replacement. The sizes of the nuts and bolts we give may be different from what you have so be prepared with different size sockets and wrenches. Protect your eyes, hands and body from fluids, dust and debris while working on your vehicle. If you're working with the electrical system, disconnect the battery before beginning. Always catch fluids in appropriate containers and properly dispose of any fluid waste. Recycle parts, packaging and fluids when possible.

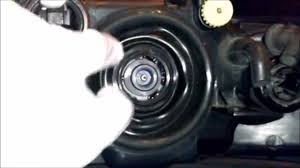

Never work on your vehicle if you feel the task is beyond your ability. Our vehicle may vary slightly from yours as models do change and evolve, as they grow older. If something seems different, let us know and share your info to help other users. Do you have questions or want to add to the article? Leave a comment below. When leaving a comment, please leave your vehicle information. When replacing headlight bulbs, you can access the high beam bulb (green arrow) from inside the engine compartment. However, the low beam bulb (yellow arrow) can only be accessed by removing the headlight assembly. I will show you how to replace the high beam bulb. Then remove the headlight assembly and service the low beam bulb and the headlight assembly module. High beam bulb: To access the high beam bulb, rotate the access door 30 degrees and remove it from the headlight. High beam bulb: Rotate the high beam bulb holder (red arrow) 45 degrees and remove it from the headlight. High beam bulb: Pull the headlight bulb (green arrow) out of its socket (red arrow) and replace it with a new bulb.

Reverse the steps for installing. Be sure that the bulb is properly seated in the socket before trying to install it into the headlight. Headlight assembly: Working at the radiator support, remove the hood seal (green arrow). Lever out one side of the assembly (inset) to release the retaining clips. Then work your way along the seal, detaching it until it's free. Headlight assembly: Then, remove the five T30 Torx bumper cover fasteners (green arrows). Headlight assembly: Working at the top of the headlight, remove the two T30 Torx fasteners (green arrows). Then loosen the two 8mm fasteners (red arrows, inset) about four turns. Headlight assembly: Pull the corner of the bumper cover away from the headlight and hold it. Then slide the headlight assembly toward the front of the vehicle until it is out of the lower fasteners. Then remove it from the vehicle. For example, slide the left headlight out toward the left and the right headlight out toward the right. Headlight assembly: Disconnect the headlight electrical connectors.

Slide the main electrical connector lock down to unlock it. Then pull the connector straight off the headlight. Then remove the smaller connector by pressing the release tab and pulling it straight off (inset). Once disconnected, remove the headlight from the vehicle and place it on your workbench. Headlight assembly: Remove the low beam access door by pressing the release tabs (green arrows) and removing. Fold it down and then pull it out of the lower mounts. Headlight assembly: Flip the locking spring (green arrow) off the headlight. Then rotate the bulb holder 5 degrees to remove it. The electrical connector will automatically release (red arrow). Headlight assembly: Pull the bulb holder off to remove it. Then squeeze the bulb retaining springs to detach them and allow them to rest at the side of the bulb. Pull the bulb straight out of the headlight to remove it. Reverse the steps to install a new bulb. Do not touch the bulb with your bare skin. Headlight assembly: Flip the headlight over to service the control modules.
